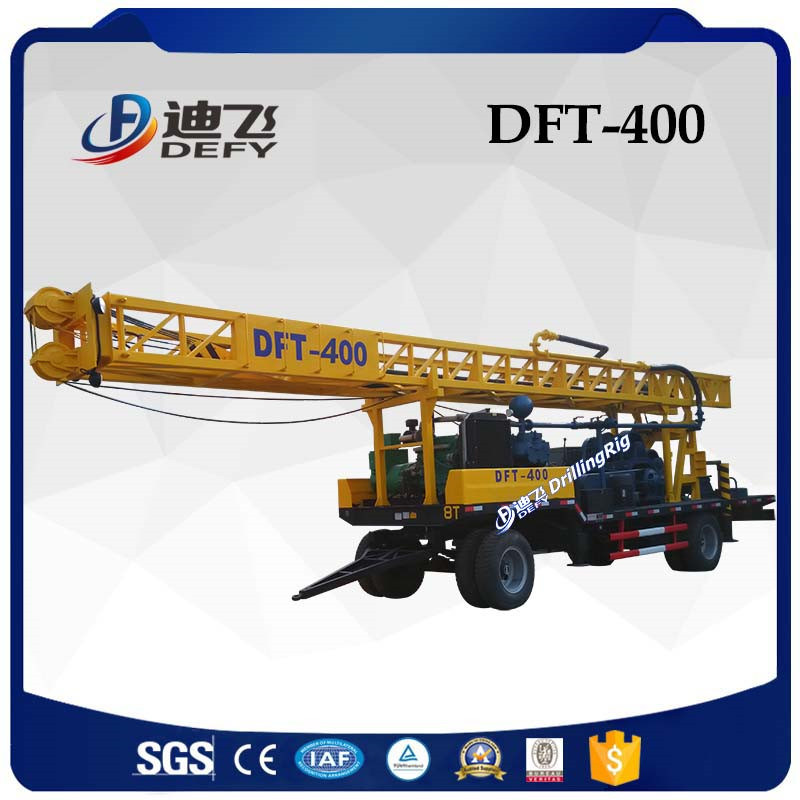

DFT-400 Trailer mounted deep water well drill rigs
1. DFT-400 water well drill rigs are a portable trailer mounted water well drilling rig. It can drag on tractor for moving, convenient and quick, with high working performance. It is equipped with 108x108x7500mm square main drill rod, and Φ89x6000mm normal drill rod.
2. When drilling, it has independent diesel engine as power, making winch and turntable working by mechanical transmission.
3. Equipped with four hydraulic legs. The four legs can work at same time or separately working, to keep good balance. Meanwhile, the rear legs can stretch out horizontally, improving the stable working. Drill tower is raised by hydraulic cylinder, stable and easy to operate, apply to different working conditions.
4. Main parts include winch, turntable, gearbox, drill tower, chassis, are all manufactured in our factory, with stable performance.
5. It is widely used in high-rise buildings, bridges, geological mine, port, dam foundation, well construction, complex ground source heat pump, etc.
6. Easy operation, strong capacity, easy maintenance, low investment.
Technical Parameter
| Main Machine | |
| Drill depth (m) | 400 |
| Drill diameter (mm) | 500 |
| Through-hole diameter of turntable (mm) | 500 |
| Turntable forward speed (r / min) | 38;65;89 |
| Reverse turntable speed (r / min) | 38;65;89 |
| Forward wheel torque (kN.m) | 18;13.8;8.8 |
| Reverse torque turntable (kN.m) | 18;13.8;8.8 |
| Hoist lifting capacity (single rope) (KN) | 40 |
| Faucet carrying capacity (KN) | 300 |
| Main drill (mm) | 108x108x7500 |
| Vice drill pipe (mm) | ¢89×10×5500 |
| Operating state (mm) | 9677×2480×13600 |
| Weight (kg) | 15340 |
| Transport size(L*W*H)(mm) | 12500*2480*3500 |
| Working size(L*W*H)(mm) | 9677*2480*13600 |
| Transport position (mm) | 12500×2480×3500 |
| Engine | Model: 100kw diesel generator sets |
| Rated power 100KW | |
| Rated speed 1100r / min | |
| Output torque 600N.M | |
| Mud Pump | Model: BW850 |
| Bore diameter (mm): 150 | |
| Stroke (mm): 180 | |
| Stroke times (min-1): 82,58 | |
| Displacement (L / min): 850,600 | |
| Pump pressure (MPa): 2,3 | |
| Input power (KW): 40 (54HP) | |
Trailer type deep water well drilling rig working in Sudan
